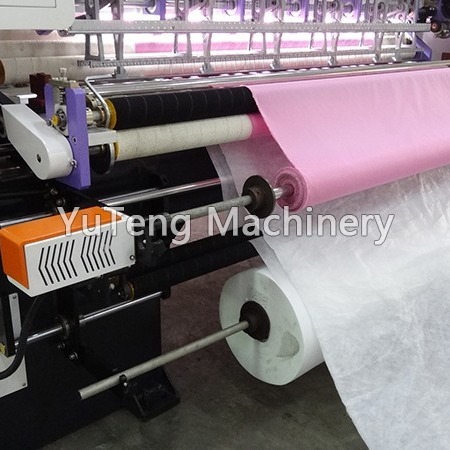

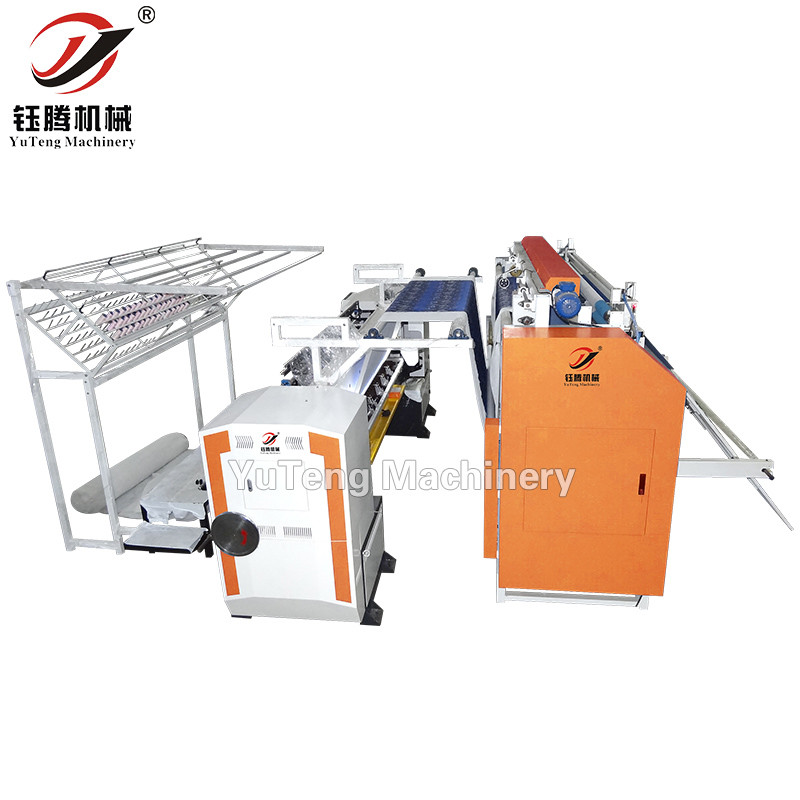

Computerized Multi-Needle Shuttle Quilting Machine
Product Description:
It efficiently stitches simple patterns on quilts, mattress covers, and bedspreads, ideal for high-speed, precise mass production in textile manufacturing.
Features:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Technical Parameters:
| Model | YGB96-2-3 | YGC96-3-5 | YGC96-3-6 |
| Dimension(L*W*H) | 4900*1200*1800(mm) | 4900*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 2450mm | 2450mm | 2450mm |
| Needle rows | 2 | 2 | 2 |
| Space between needle rows | 3'' inch | 3''+2" inch | 3'' +3"inch |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ | 380V/50HZ,220V/60HZ,3P |
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 4500kg | 4500kg | 4500kg |
Can be customized according to customer requirements
Operation with other equipment:
It can be used alone,also suitable for use with other equipment
with bobbin winder machine
with fabric cutting machine
with cloth rolling machine
Support and Services:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Warranty: 1 year
Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
Packing and Shipping:
Our company typically packages machines using film and paper board at no extra cost. However, if you prefer wooden crates for added durability, we can provide this option for an additional fee.
