Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min

Dongguan Yuteng Machinery Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min

Place of Origin : Guangdong, China

Brand Name : YuTeng

Packaging Details : The wooden case

Price : $35,000.00/sets 1-1 sets

Applicable Industries : Other, Mattress factory

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Max Sewing Speed : 30-200(m/hour)

Max Sewing Thickness : 25mm

Number of Head : 2

Moving Style : Frame Moved

Voltage : 380V/220v 50h

Power : 3.5KW

Dimension(L*W*H) : 3950*1400*1800

Weight : 3200

Warranty : 1 Year

Product name : Quilting Machine Prices

Contact Now

High Speed Computerized Chain Stitch Multi Needle Quilting Machine
Our Advantages
Computerized speed governing , max.800r/min.
Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the
operating load of motor.
Dual clutch device, to solve the synchronization problem of rollers in front and back.
Using high-precision and high rigidity Imported screw mandrel.
360 degree free quilting come with unlimited Multi-span quilting independent patterns.
Automatic thread-break detection unit.
Infrared sensor make sure more safety operation.
The machine runs smoothly, low noise, high precision, low thread-break rate and easy to operate.
Product Paramenters
Model YGH64,YGH80Y,YGH96
Dimension(L×W×H)(mm) 3950*1400*1800,4250*1400*1800,4900*1400*1800
Quilting width 1650mm,2000mm,2450mm
Needle rows 2/3
Space between needle rows 3"/3"+1.5"/3"+2"/3"+3"
Space between needle 25.4mm
X-axis movement displacement 203.2mm,170mm,254mm
Thickness of quilting ≤25mm
Stitch length 1-12mm
Speed of operation 30-200(m/hour)
Model spindle machine 7#,10#
Model of needle 16#,19#
Quilting speed 850(r/min)
Voltage(AC) 380V/220V/50HZ
Total power 3.5KW,5.5KW
Gross weight 3200KG,3650KG,4250KG
Product Show

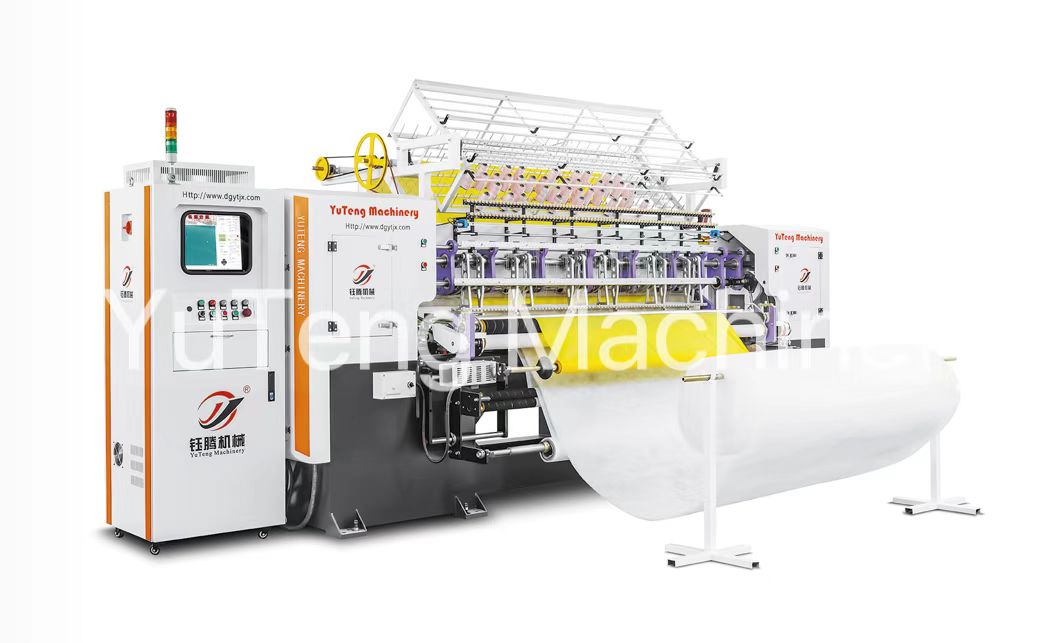

Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
Finished Product Display

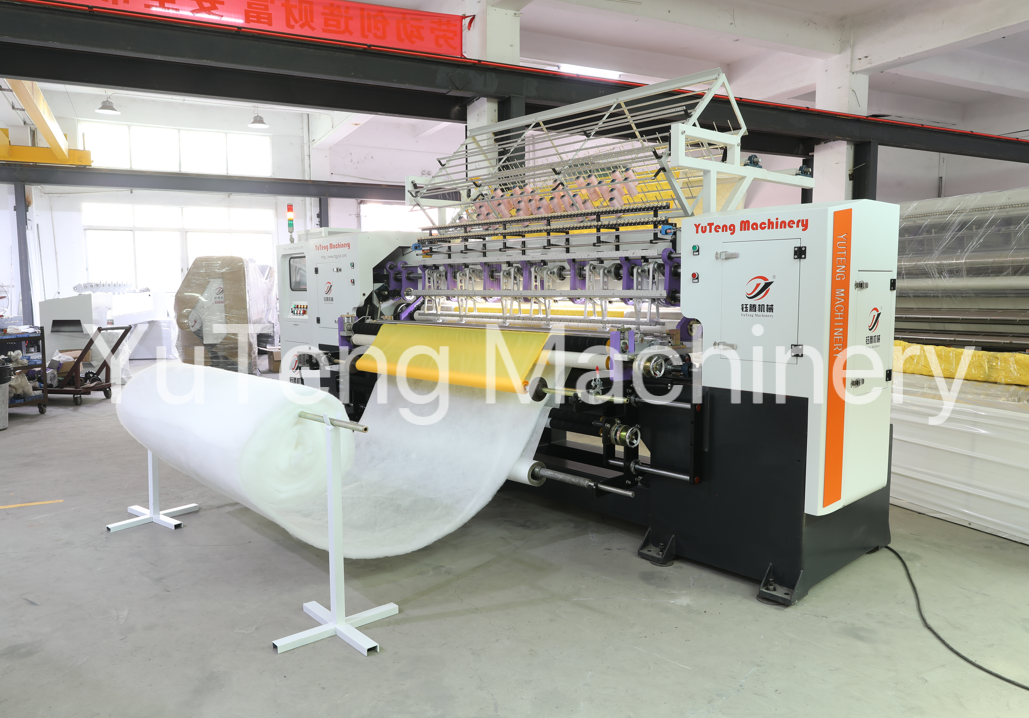

Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
Company Profile
Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. Is a modernized, high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine, Double Rows Computerized Quilting and Embroidery Machine ,Computerized Chain Stitch Multi-Needle Quilting Machine ,Computerized Panel Cutter Machine, Rolling machine .The products are widely used in garment, bedding, handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the the profound development in production, sales, and Service. The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over. 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad . Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clients with full technical support and perfect after service. With integrity, profession, innovation, science and technology, YuTeng is looking forward to cooperating with companies from all over the world.
Certifications
Chain Stitch Industrial Quilting Machine Multi Needle High Speed 800r / Min
