High Speed Precision Industrial Quilting Machine For Clothing Industries

Name: High Speed Precision Industrial Quilting Machine For Clothing Industries
Brand: YuTeng
Price: 30 USD

Place of Origin : Guangdong, China

Brand Name : YuTeng

Packaging Details : wooden case

Price : $30,000.00/sets 1-1 sets

Applicable Industries : Other, clothing factory

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Max Sewing Speed : 20-160(m/hour)

Max Sewing Thickness : 25

Number of Head : Double Heads

Moving Style : Frame Moved

Voltage : 380V/220V/50Hz

Power : 3.5Kw

Dimension(L*W*H) : 3800*1200*1800mm

Weight : 3300

Warranty : 1 Year

Machine Type : Long Arm Quilting Sewing Machine

Contact Now

Industrial Quilting Machine With High Speed And Precision Computerized ShuttleMulti Needle Quilting Machine

Large Work Area: These machines offer a spacious work area, allowing for the quilting of large fabric panels or multiple layers simultaneously. The ample workspace accommodates bulky materials, such as thick padding or multiple quilt layers, providing the flexibility to handle various quilt sizes and designs.
Precision Stitching: Industrial quilting machines are equipped with advanced stitching mechanisms that enable precise and consistent stitching. They feature multiple needles and bobbins, allowing for the creation of intricate quilting patterns, such as stippling, loops, or intricate designs. The adjustable stitch length and tension settings provide control over the final appearance and quality of the quilting.

Product Paramenters

Model	64series
Model	Model	64-2-3	64-3-4.5/5/6
Dimension(LWH)(mm)	380012001800	380012001800
Quilting Width(mm)	1650mm	1650mm
The Number of Neeedle Rows	2	3
Space Between Needle Rows	3"	3"+1.5"/3"+2"/3"+3"
Space Between Needle	24.5mm	19.05mm/25.4mm
X-axis Movement Displacement	203.2mm	228.6mm/228.6mm/304.8mm
Thickness of Quilting	≤25mm	≤25mm
Stitch Length	2-6mm	2-6mm
Speed of Operation(m/hour)	20-120	20-120
Model of Needle	16#,19#	16#,19#
Quilting Speed(r/min)	300-800	300-800
Voltage(AC)	380V/220V/50Hz	380V/220V/50Hz
Total Power	3.5Kw	3.5Kw
Gross Weight	3300Kg	3300Kg

Product Show

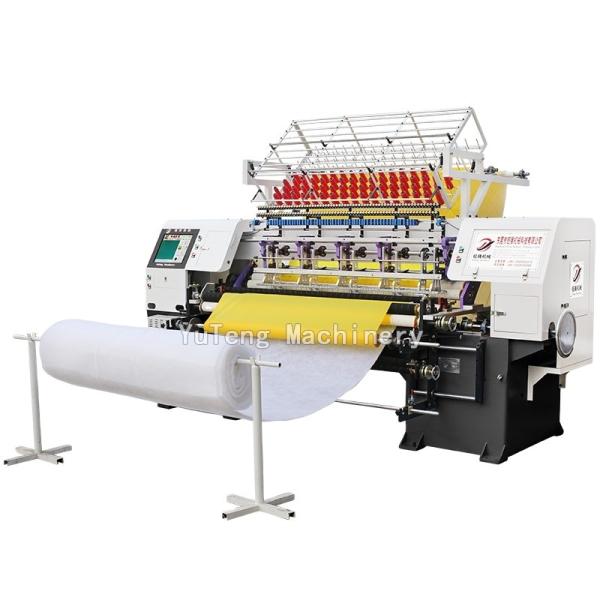

High Speed Precision Industrial Quilting Machine For Clothing Industries

Patented structure

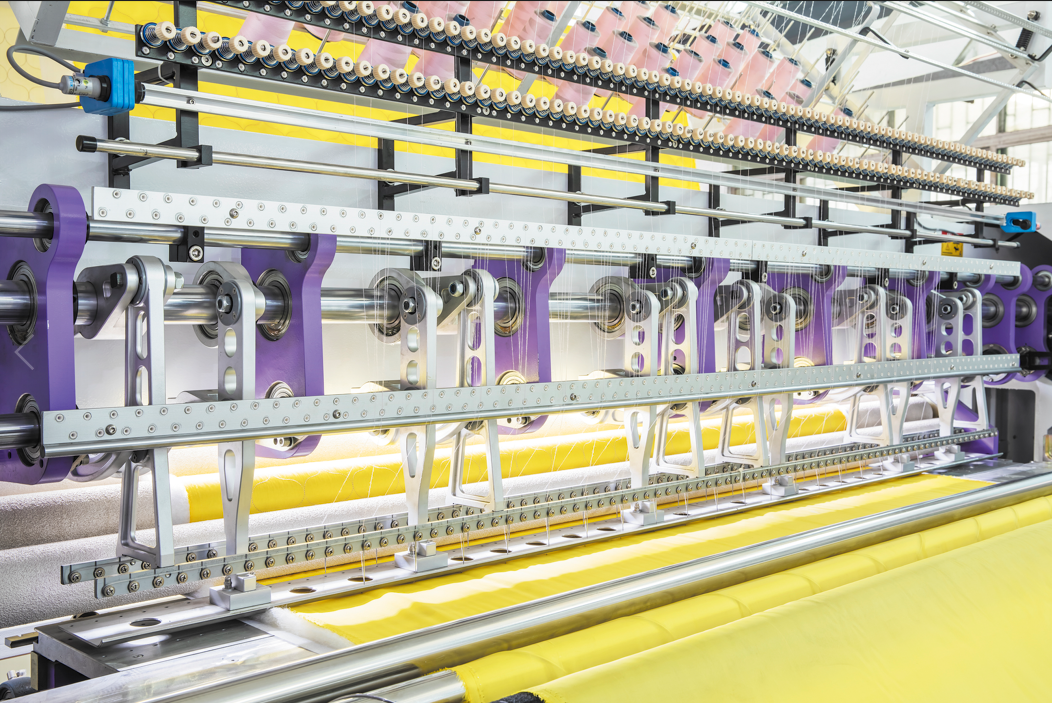

Aluminum alloy needle and pressure rod holder

Finished Product Display

Our Advantages

Computerized speed governing ,max. 800r/min Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor. Dual clutch device, to solve the synchronization problem of rollers in front and back. Using high- precision and high rigidity Imported screw mandrel 360 degree free quilting come with unlimited Multi- span quilting independent patterns. Automatic thread- break detection unit. Infrared sensor make sure more safety operation. The machine runs smoothly, low noise, high precision, low thread -break rate and easy to operate.
