Computer Non-Shuttle Multi-Needle Mattress Quilting Machine:
Product Description:
It is widely used for quilting advanced mattress,bedding products,carpets and cushions
Machine Function:
1. New aluminum alloy needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
2.360°Multi-span and independent patterns, automatic thread trimming function
3. Self-developed “YuTeng Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5.Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6.Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7.The spindle, X, Y axis all adopt high-power servo motor
8.Strong functions of pattern-combining and multi-span(Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
9.High rigid machine body, high running speed, balance running, high precision, lower rate jump threads, perfect pattern stitch.
10. Infrared safety protection and Auto-stop sensors detection function
Machine Specification:
| Model | YT-3000A | Stitch length | 2-12mm |
| Dimension(L * W * H) | 5000*1600*2300mm | Production speed (m/h) | 60-230(m/hour) |

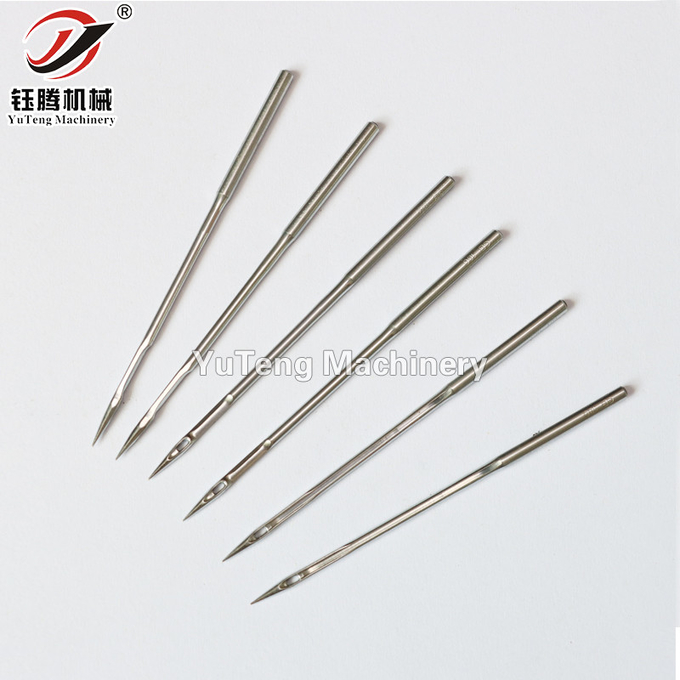

| Quilting width | 2450mm | Needle model | 21#,22#,23#,24# |
| Number of needle rows | 3 | Quilting speed | 100-1000(r/min) |
| Space between needle rows | 3"+2";3"+3" | Voltage (AC) | 380V/50Hz / 220V/60Hz |
| Space between needle | 25.4mm | Power | 8KW |
| X-Trip | 305mm | Weight | 5500KG |
| Quilting thickness | ≤80mm | | |
* Can be customized according to customer requirements
Our Certificate:
Integrity wins the world,quality creats brilliance!Product is the best marketing,quality is the best service!
Support and Services:
To reassure our customer, we provide one year guarantee to meet concerns, within warranty, customer will get free new parts for replacement. Technician is always available via online assistance, we'll engaged in solving every problem comes to us in quick fashion. In our concept, customer is entitled to have a robust machine accomplishing it's task successfully free from any worries, high quality and good service is our best repay for customer's trust and confidence
Manufacturing Workshop:
FAQ:
1.The default voltage is 380v/50HZ, 220v/60HZ. Please advise us your country's rated industrial voltage before shipping if different .
2.Payment terms: By T/T, 30% in advance, 70% pay off before delivery.
