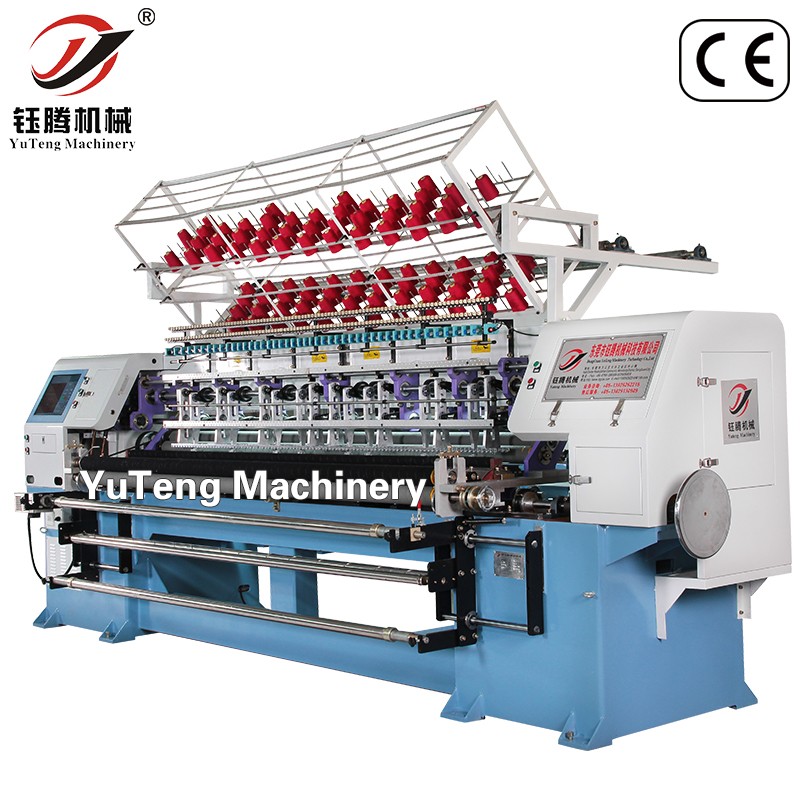

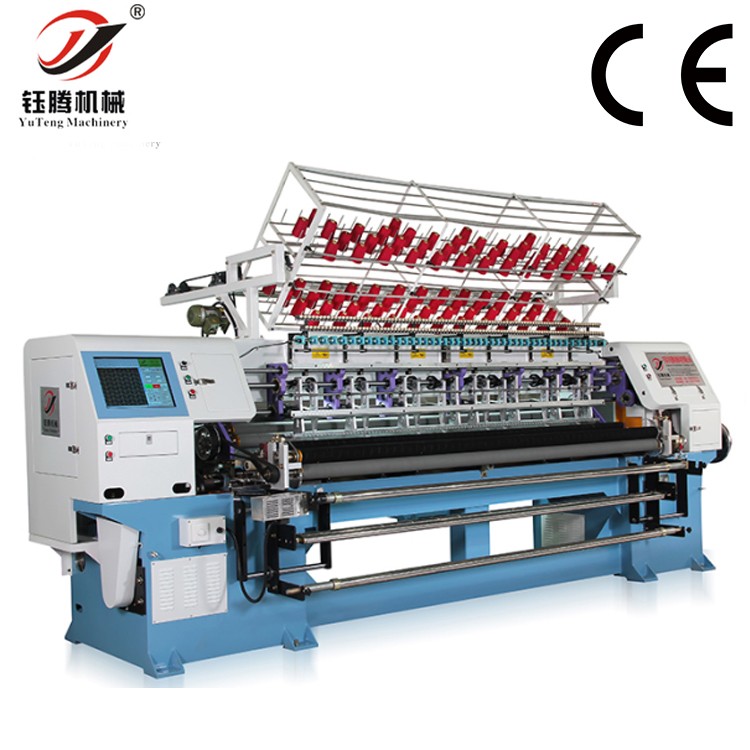

2450mm Lock Stitch Quilting Machine

Name: 2450mm Lock Stitch Quilting Machine
Brand: YuTeng
Price: 10 USD

China 2450mm Lock Stitch Quilting Machine wholesale

Place of Origin : Guangdong, China

Brand Name : YuTeng

Model Number : YGB96

Certification : CE Certificate

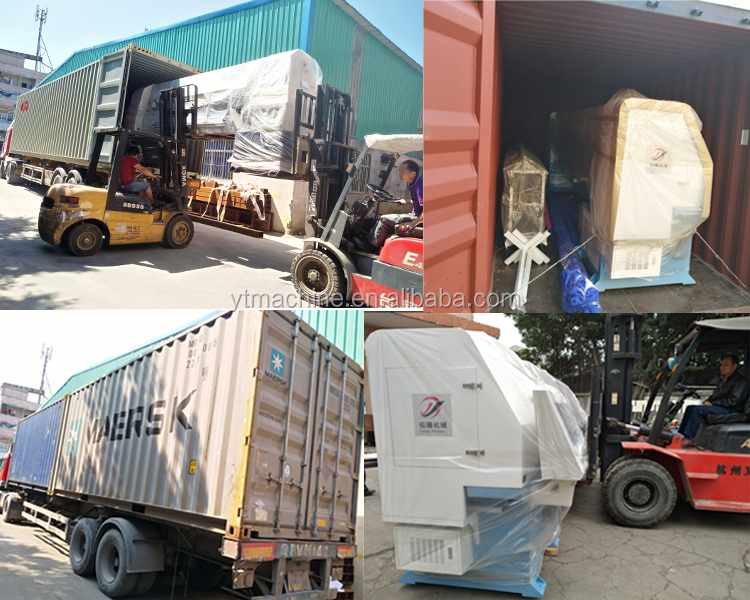

Packaging Details : Packaging Details professional industrial manufacture of quilting machine for sale:
export standard packing
Generally speaking, the packing can be carried out with film and box, which can be packed according to the customer's requirement.

Supply Ability : 200 Set/Sets per Year

Price : $10,000.00 - $60,000.00/sets

Condition : New

Max Sewing Speed : 2450mm

Max Sewing Thickness : <25mm

Number of Head : Multi needle

Moving Style : Frame Moved

Voltage : 380V 220V

Power : 5.5KW

Dimension(L*W*H) : 4900mm*1200mm*1800mm

Weight : 4500kg

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Speed of operation : 60-230(m/hour)

Product name : YuTeng YGB96

Color : White

The number of needle rows : 2/3

X-axis movement dispalcement : 254mm

Quilting Speed (r/min) : 300-800

Model of needle : 16# 19#

Port : Shenzhen

Contact Now

Top Sale Computerized Quilting Sewing Machine For Leather Good Stability Most Selling

Model	96series	Stitch length	2-6mm
*Dimension(LWH)(mm)*	*490012001800*	Speed of operation(m/hour)	20-120
Quilting Width(mm)	2540mm	Model of needle	16#19#
The number of needle rows	2/3	Quilting Speed(r/min)	300-800
Space between needle	25.4mm	Voltage(AC)	380V 220V
X-axis movement displacement	254mm	Total power	5.5kw
Thickness of quilting	≤25mm	Grossweight	4500kg

Purpose

It is widely used for quilting high-quality garments , bedding covers , texile , leather , shoes , cap , bags , vanity , gloves , sleeping bag , seat cover and Wall decoration etc .

Main Features

1)Computerized speed governing , max.800r/min.
2)Needle row driven by aluminum alloy needle bar frame structure . Oil free , sturdy and durable .
3)Saddles and Rollers driven by Servo driven equipment , Spindle adopts frequency conversion control .
4)Saddles using quilting machine with high rigidity design . The stand of fabric separate from saddles , effectively reduce the operating load of motor .
5)Dual clutch device , to solve the synchronization problem of rollers in front and back .
6)Using high-precision and high rigidity imported screw mandrel .
7)360 degree free quilting come with unlimited Multi-span quilting independent patterns .
8)Automatic thread -break detection unit .
9)Infrared sensor make sure more safety operation .
10)The machine runs smoothly , low noise , high precision , low thread-break rate and easy to operate .

1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warrany: One year.
6.Customized Model are available to meet client's various needs.

Welcome to contact with us,for more information of quilting machine.

If you want more machine information,Please contact with salesman Ms. Ivy Lee

Wechat: 13680622851
WhatsApp:+9613680622851

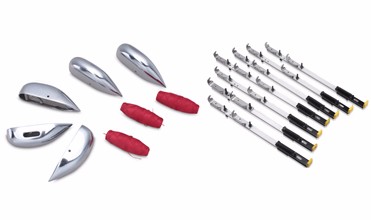

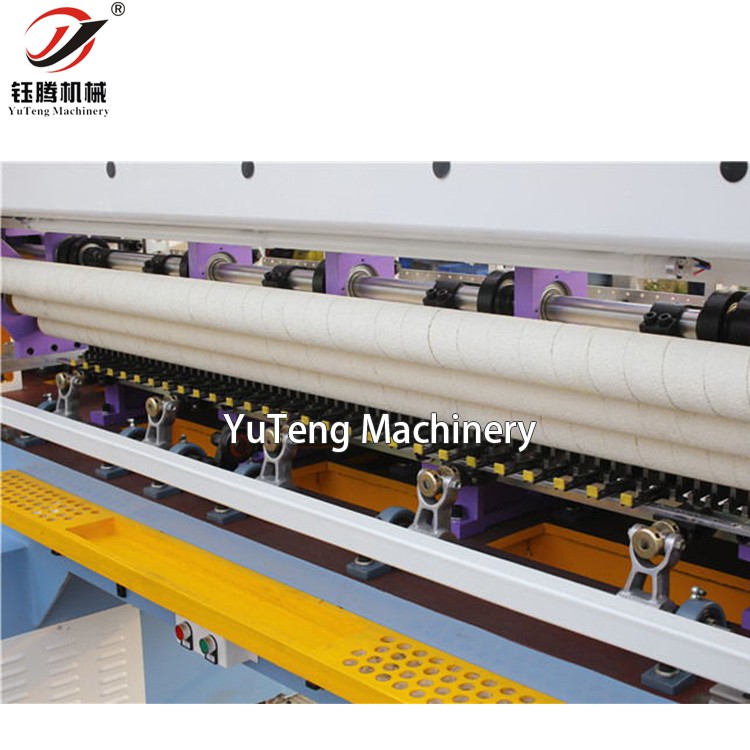

Detailed Image

Certifications

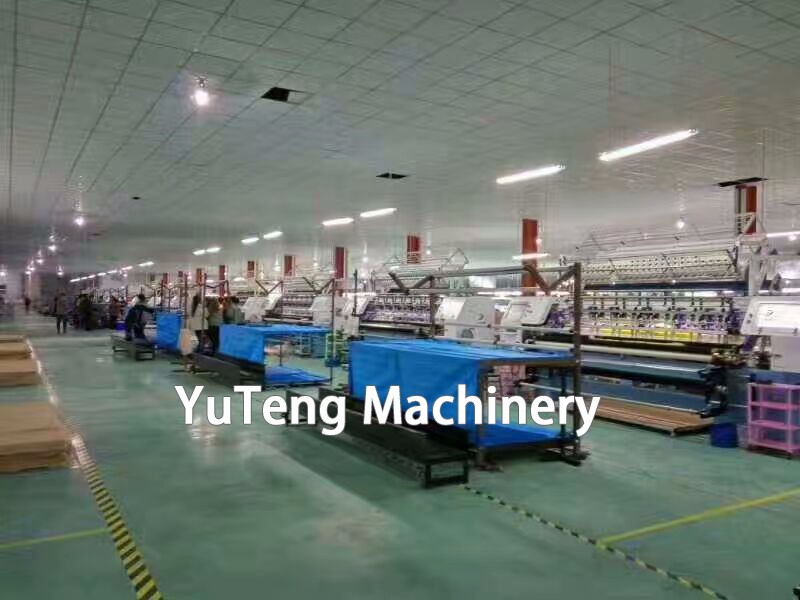

Company

The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
