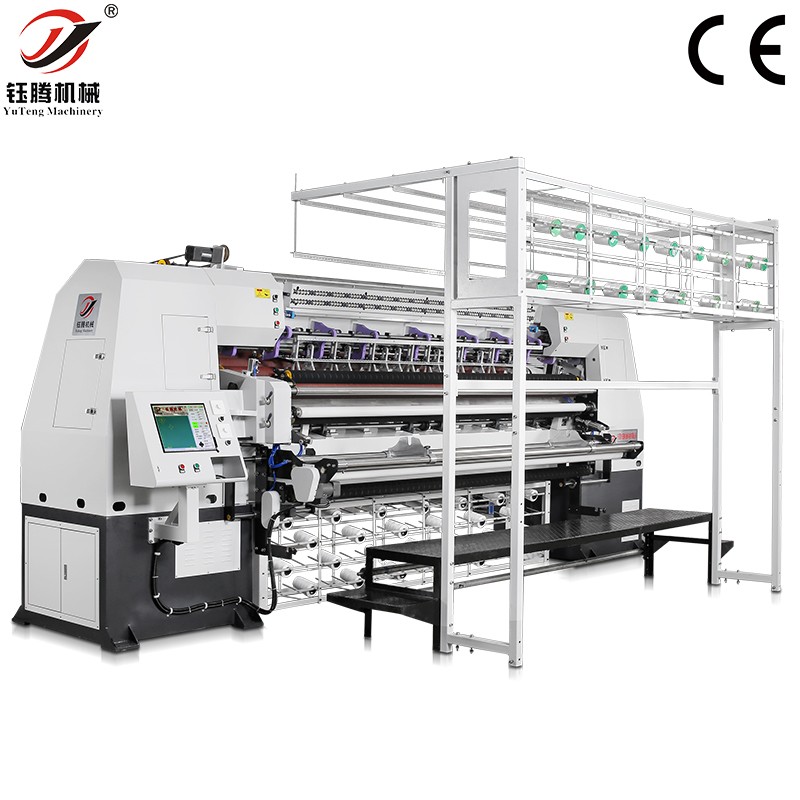

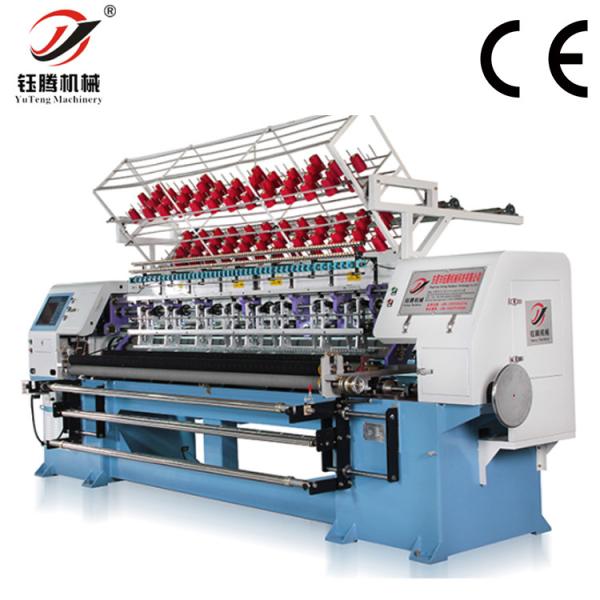

YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE

  • 1
  • 2
  • 3

Condition : New

Place of Origin : Guangdong, China

Brand Name : YuTeng

Model Number : YGB96-2-3

Max Sewing Speed : 800r/min

Max Sewing Thickness : 25mm

Number of Head : Multi needle

Moving Style : Frame Moved

Voltage : 380V/220V/50HZ

Power : 5.5kw

Dimension(L*W*H) : 4900*1200*1800

Weight : 4500kg

Warranty : One Year

After-sales Service Provided : Engineers available to service machinery overseas

Certification : CE Certificate

Quilting width : 2450mm

The number of needle rows : 2

Space between needle rows : 3"

Space between needle : 24.5mm

X-axis movement displacement : 203.2mm

Stitch length : 2-6mm

Speed of operation : 20-120mm

Model of needle : 16# 19#

Packaging Details : film packing

Port : shenzhen

Supply Ability : 300 Set/Sets per Year

Price : $10,000.00 - $60,000.00/sets

Contact Now

Product Application

It is widely used for quilting high-quality garment , bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.

Technical parameters
Model
YGB96-2-3
Thickness of quilting
25mm
Dimension(L*W*H)
4900*1200*1800mm
Stitch length
2-6mm
Quilting Width
2450mm
Speed of operation
20-120mm
The number of needle rows
2
Model of needle
16# 19#
Space between needle rows
3"
Quilting Speed
300-800r/min
Space berween needle
24.5mm
Voltage
380V/220V/50HZ
X-axis movement displacement
203.2mm
Total power
3.5kw
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE

Main Features

1) Adjusted speed by computer and the speed can reach 800r/min.
2) The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
3) Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4) Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5) Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6)Adopt high precise and high rigidity import screw rod
7)360° random quilting and limitless multi-span and independent quilting.
8)Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9)Infrared sensor makes the operation more secure.

10)Stable operation, low noise, high precision, few break line, easy operating.
11)Unique design concept of three rollers, make the flower shape box line more beautiful, more stable running (YGB series).

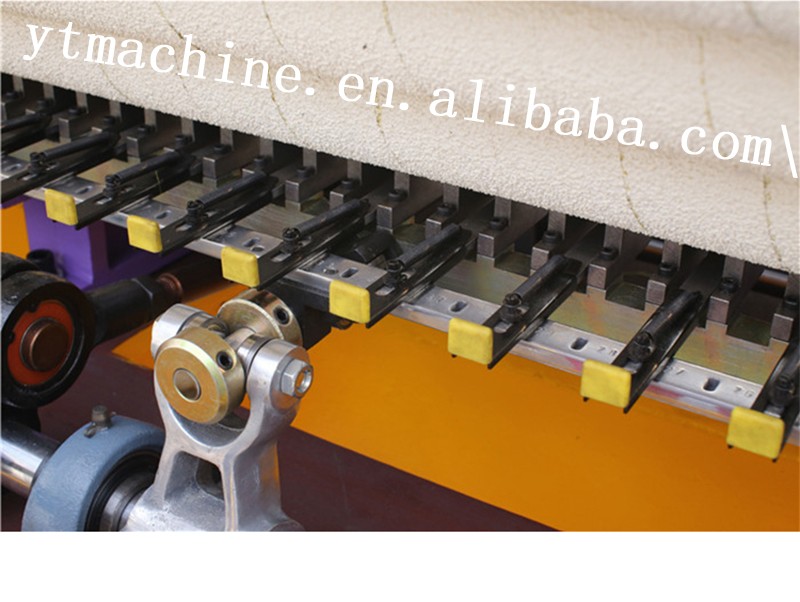

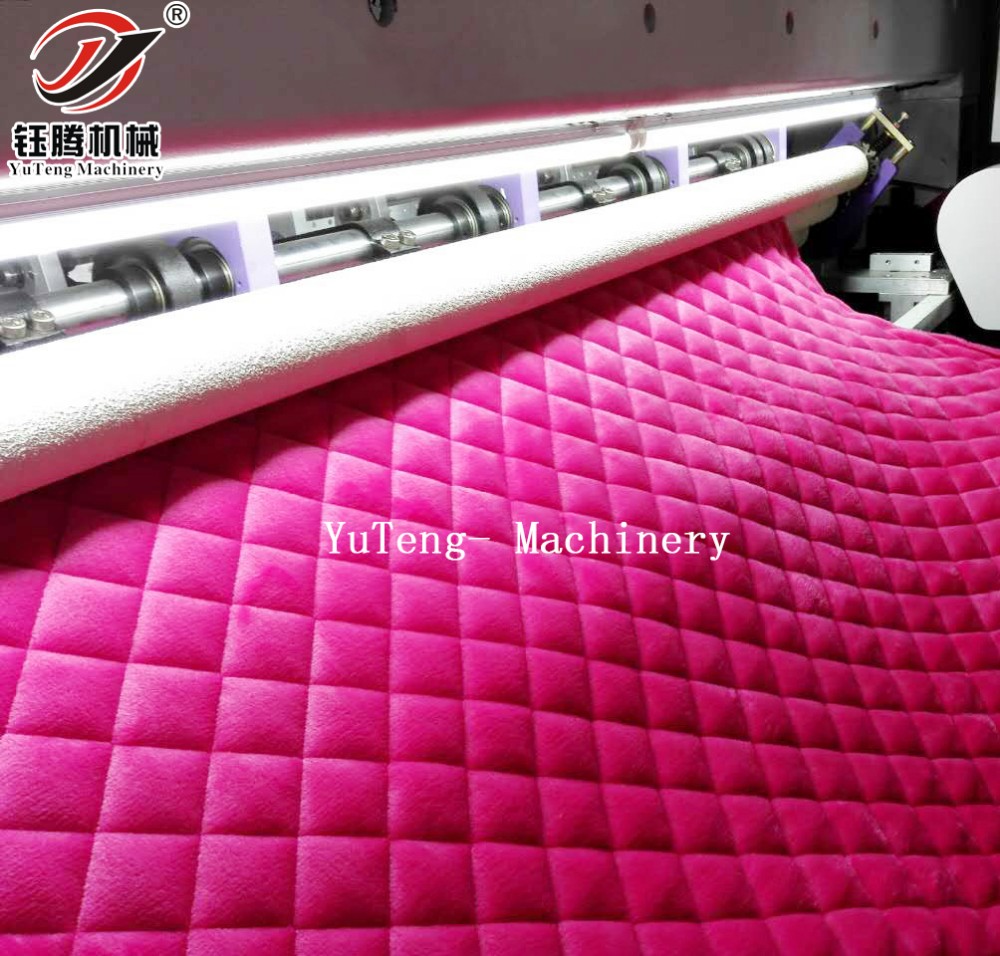

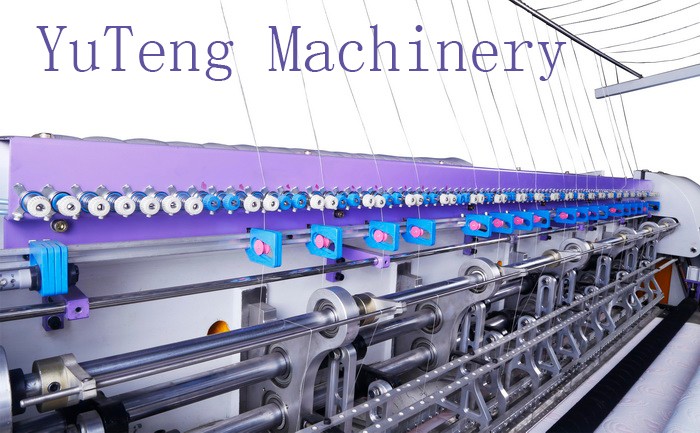

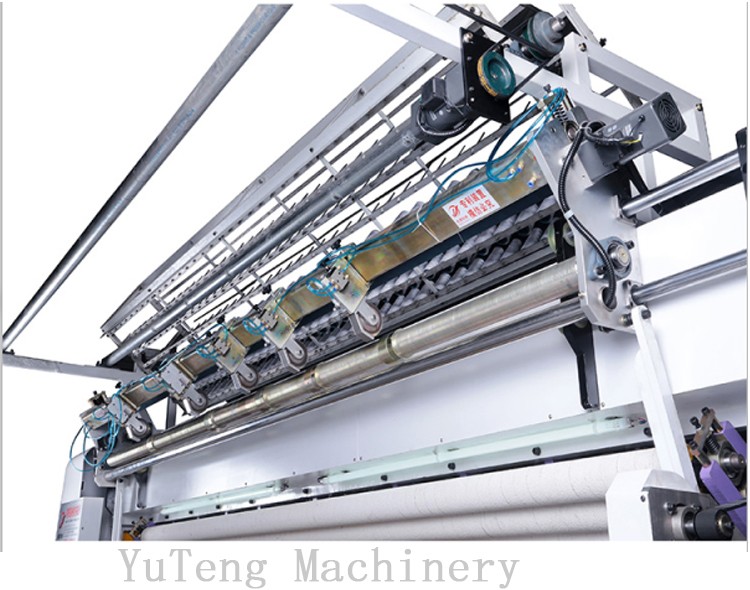

Detailed Images
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE





YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE





YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE

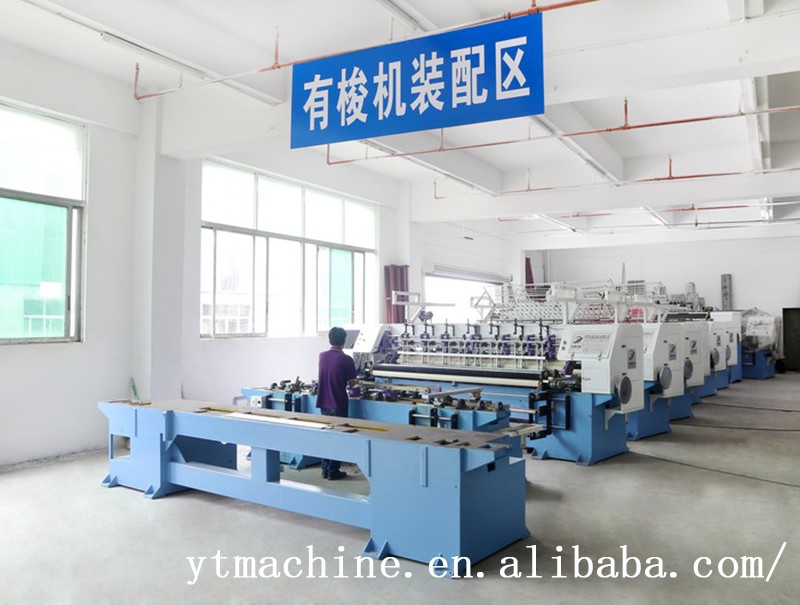

Our Company

The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.


Our Service
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*warranty: 1 year

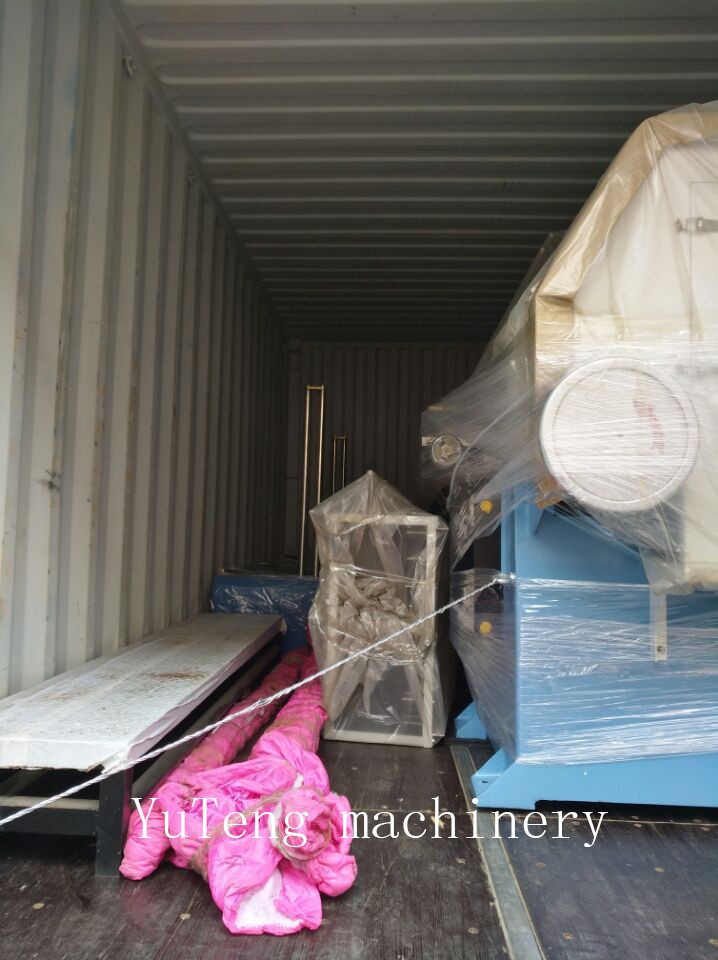

Packing & Delivery
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
Packaging



Packaging Details
The normal package is PE film packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
YuTeng HIgh Speed Multi Needle Quilting Sewing Machine with CE
Packaging



Packaging Details
The normal package is PE film packing, It is both ok If you ask wooden box, and the wooden box will be fumigated.
