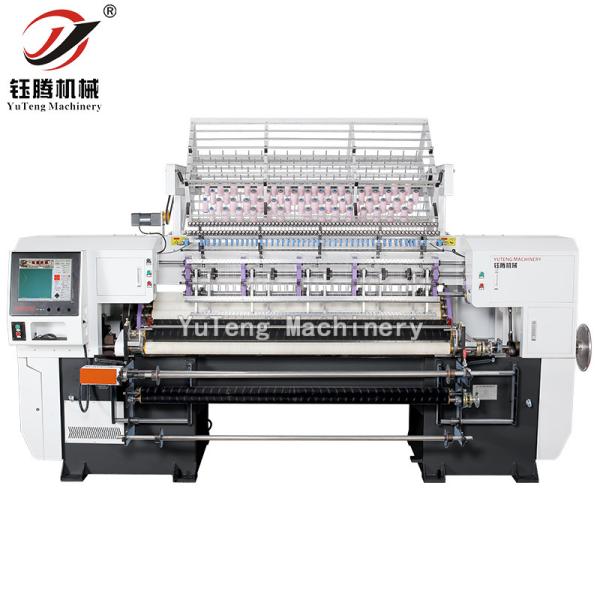

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Product Categories
Dongguan Yuteng Machinery Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Place of Origin : Guangdong, China

Brand Name : YUTENG

Certification : CE Certificate

Packaging Details : Seaworthy packing

Supply Ability : 350 Set/Sets per Year

Price : $10,000.00 - $32,000.00/sets

Applicable Industries : Factory Use

Showroom Location : Viet Nam, South Korea

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Max Sewing Speed : 800 R/min

Max Sewing Thickness : 25mm

Number of Head : Multi Needle

Moving Style : Roller

Voltage : 380V/220V

Power : 3.5kw

Dimension(L*W*H) : 4300*1200*1800(mm)

Weight : 3800kg

Warranty : 1 Year

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Viet Nam, South Korea

After-sales Service Provided : Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

Port : ShenZhen /GuangZhou

Contact Now

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Technical parameters :

Model

YGC76-2-3

YGC76-3-5

Dimension(L*W*H)

4300mm*1200mm*1800mm

4300mm*1200mm*1800mm

Quilting Width

2000mm

2000mm

Needle rows

2

3

Space between needle rows

3"

3"+2"

Space between needle

25.4mm

25.4mm

X-axis movement displacement

254mm

304.8mm

Thickness of quilting

25mm

25mm

Stitch length

2-6mm

2-6mm

Speed of operation(m/hour)

20-120(m/hour)

20-120(m/hour)

Model of needle

16#,19#

16#,19#

Quilting Speed(r/min)

300-800(r/min)

300-800(r/min)

Voltage(AC)

380V/50HZ,3-Phase

220V/60HZ,3-Phase

380V/50HZ,3-Phase

220V/60HZ,3-Phase

Total power

3.5KW

3.5KW

Gross weight

3800kg

3800kg

Product main features :

1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Purpose :

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Certificate :

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Company pictures :

High Speed Shuttle Multi Needle Quilting Machine Coat Clothe Seat Cover Typical Sewing Machine

Company information:

The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.

Our service :

1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.

4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.

6.Can provide quilted fabric samples.
