Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine

Name: Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine
Brand: YuTeng Machinery
Price: 10 USD

China Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine wholesale

Place of Origin : Guangdong, China

Brand Name : YuTeng Machinery

Certification : CE Certificate

Packaging Details : Film packing

Supply Ability : 320 Set/Sets per Year

Price : $10,000.00 - $40,000.00/sets

Applicable Industries : Factory Use

Showroom Location : Viet Nam, South Korea

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Max Sewing Speed : 800 R/min

Max Sewing Thickness : ≤25mm

Number of Head : Multi Needle

Moving Style : Roller

Voltage : 380V/220V

Power : 4.5KW

Dimension(L*W*H) : 4800*1200*1800(mm)

Weight : 4200kg

Warranty : 1 Year

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Viet Nam, South Korea

After-sales Service Provided : Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

Port : Shenzhen/Guangzhou

Contact Now

Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine

1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.

11,Luxury lock stitch quilting machines are capable of high-speed quilting without compromising on stitch quality. They can stitch rapidly, ensuring efficient production and completion of quilting projects. The machine's powerful motor and robust construction enable it to handle thick layers of fabric with ease, providing consistent and flawless stitching results.

Technical parameters :

Model	YGB96-2-3	YGB96-3-5/6
Dimension(LWH)	480012001800(mm)	480012001800(mm)
Quilting Width	2450mm	2450mm
Needle rows	2	3
Space between needle rows	3"	3"+2"/3"+3"
Space between needle	25.4mm	25.4mm
X-axis movement displacement	254mm	304.8mm
Thickness of quilting	≤25mm	≤25mm
Stitch length	2-6mm	2-6mm
Speed of operation(m/hour)	20-120(m/hour)	20-120(m/hour)
Model of needle	16#,19#	16#,19#
Quilting Speed(r/min)	300-800(RPM)	300-800(RPM)
Voltage(AC)	380V/50HZ,220V/60HZ	380V/50HZ,220V/60HZ
Total power	5.5KW	5.5KW
Gross weight	4200kg	4200kg

Purpose :

It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine

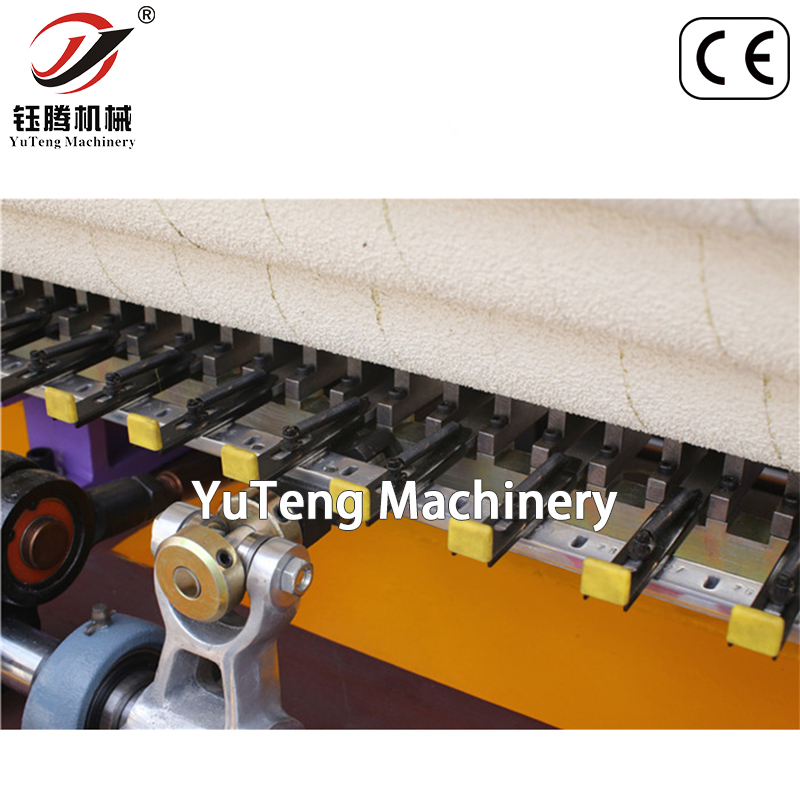

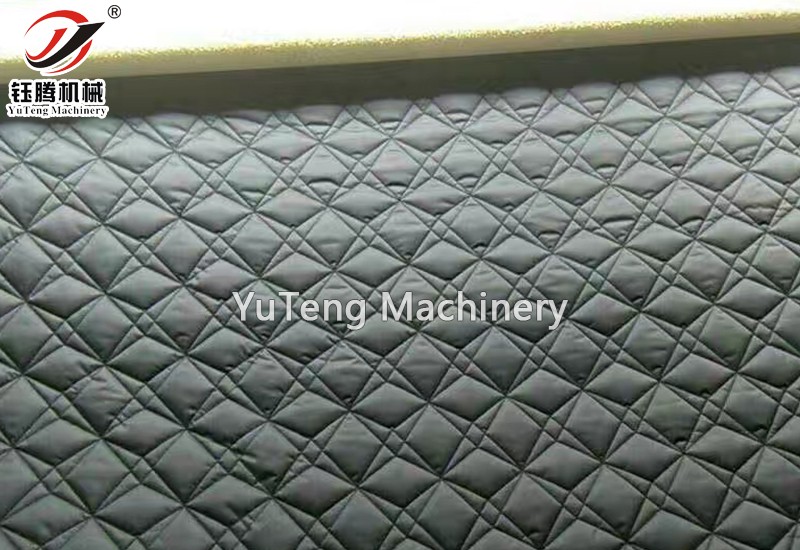

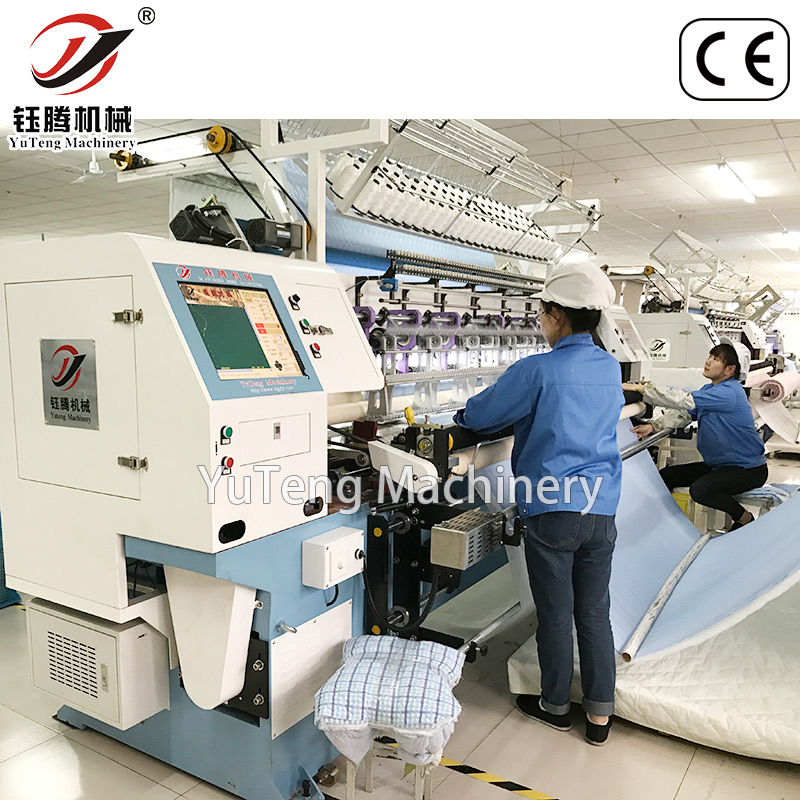

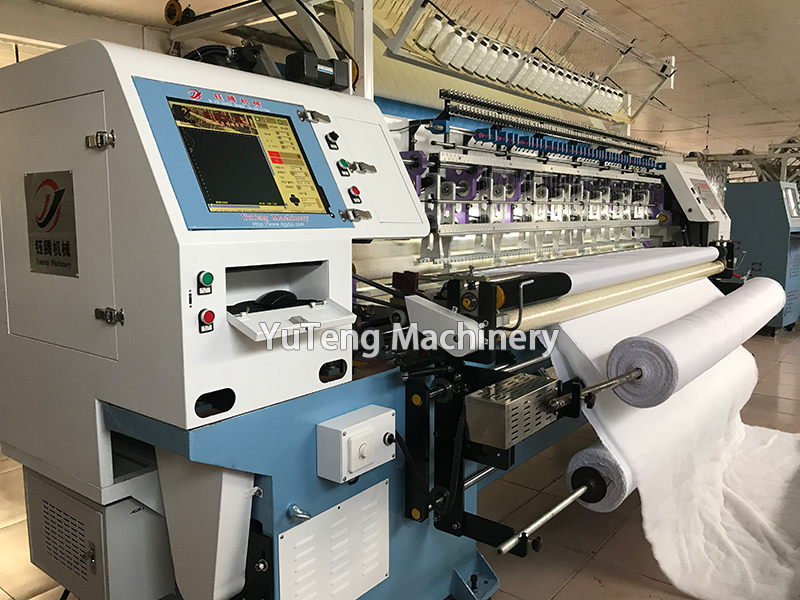

Quilting Machine Pictures :

Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine

Certificate :

Computerized Lock Stitch Sewing Quilting Machine Bed Sheet Making Machine

Our service :

1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.

4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
